Mimic Display Panel

Visualize Your System with Mimic Display Panels for Complete Control

Mimic Panel Overview

Mimic boards provide a physical representation of a system or process. They provide a simplified visual layout, often printed on materials like polyester or polycarbonate sheets. Mimic panels can be used to monitor various systems, such as fire alarm systems, security systems, and industrial processes.

Technical Features of LT Panels

Mosaic Structure:

Mimic panels are designed with a mosaic structure, using small tiles to represent individual components or zones.

Customization:

These panels can be customized with different colours, sizes, and symbols to fit specific applications. They can also be engraved.

Materials:

They are typically printed on durable materials such as polyester or polycarbonate sheets and protected with an acrylic front sheet.

Visual Representation:

Mimic panels provide a clear visual representation of a system, using LEDs and other indicators to display the status of processes. These LEDs often protrude from the panel for easy visibility.

Annunciator Panels:

Mimic panels can be combined with annunciator panels. Annunciator panels display alarms and other critical events using windows that illuminate or change color, providing operators with immediate notification of important changes in the system.p>

Technical Specifications

Specification	Details	General Values	Possible Values
Panel Type	Type of mimic panel	Wall-Mounted	Wall-Mounted, Floor-Mounted
Display Type	Type of display used in the mimic panel	LED	LED, LCD, Fiber Optic
Voltage Rating	Operating voltage of the panel	415V AC	230V AC, 415V AC
Frequency	Operating frequency of the panel	50 Hz	50 Hz, 60 Hz
Indicating Lights	Type and number of indicating lights	LED Indicators	LED, Halogen
Push Buttons	Type and number of push buttons	Standard Push Buttons	Standard, Illuminated
Control Switches	Type of control switches used	Rotary Switch	Rotary Switch, Toggle Switch
Protection Features	Built-in protection features	Overvoltage, Overcurrent	Overvoltage, Overcurrent, Short Circuit
Ingress Protection (IP Rating)	Level of protection against dust and water	IP 42	IP 42, IP 54, IP 55
Panel Material	Material used for the panel construction	CRCA Steel	CRCA Steel, Stainless Steel, Aluminum
Surface Finish	Type of finish applied to the panel surface	Powder Coated	Powder Coated, Painted
Panel Color	Color of the mimic panel	RAL 7032	RAL 7032, RAL 7035
Wiring	Type of wiring used in the panel	FRLS Copper Wire	FRLS Copper, PVC Insulated
Control Voltage	Voltage used for the control circuit	24V DC	24V DC, 110V AC, 230V AC
Operating Temperature	Ambient temperature range for normal operation	-5°C to +40°C	-10°C to +55°C
Compliance Standards	Standards the panel adheres to	IEC 61439	IEC 61439, IS 8623
Cable Entry	Provision for cable entry	Bottom	Bottom, Top

Applications of Mimic Panels

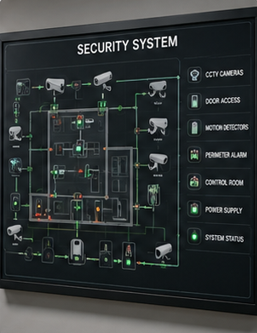

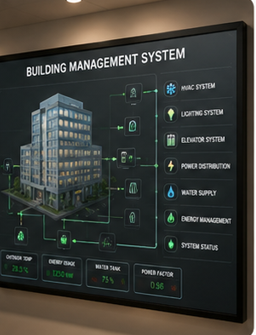

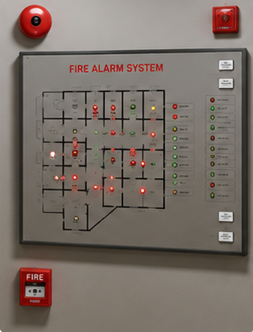

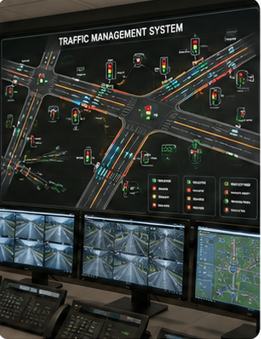

Mimic panels are essential in various systems for real-time monitoring and management. In fire alarm systems, they display building layouts and fire zones. In traffic management, they simulate road layouts and signal status. In security systems, they help monitor security setups, while in building management, they oversee critical operations.

Mimic Panel Safety and Compliance

Our Mimic panels are designed with operator safety in mind. They include features like emergency stop buttons, fault indicators, and clear labelling of all components. These panels are constructed using fire-retardant materials and are equipped with overload and short circuit protection to prevent electrical hazards. These panels are also subjected to rigorous testing, including CPRI (Central Power Research Institute) approval, to verify their performance and safety under various conditions.

Trust Burak Electric for Mimic Panels

Trust Burak Electric for reliable mimic panels, designed with precision engineering to ensure accurate real-time monitoring. Our panels are built with high-quality materials, providing durability and long-lasting performance. With a commitment to excellence and customer satisfaction, we deliver solutions tailored to meet the specific needs of various industries.
