Power Distribution Panel

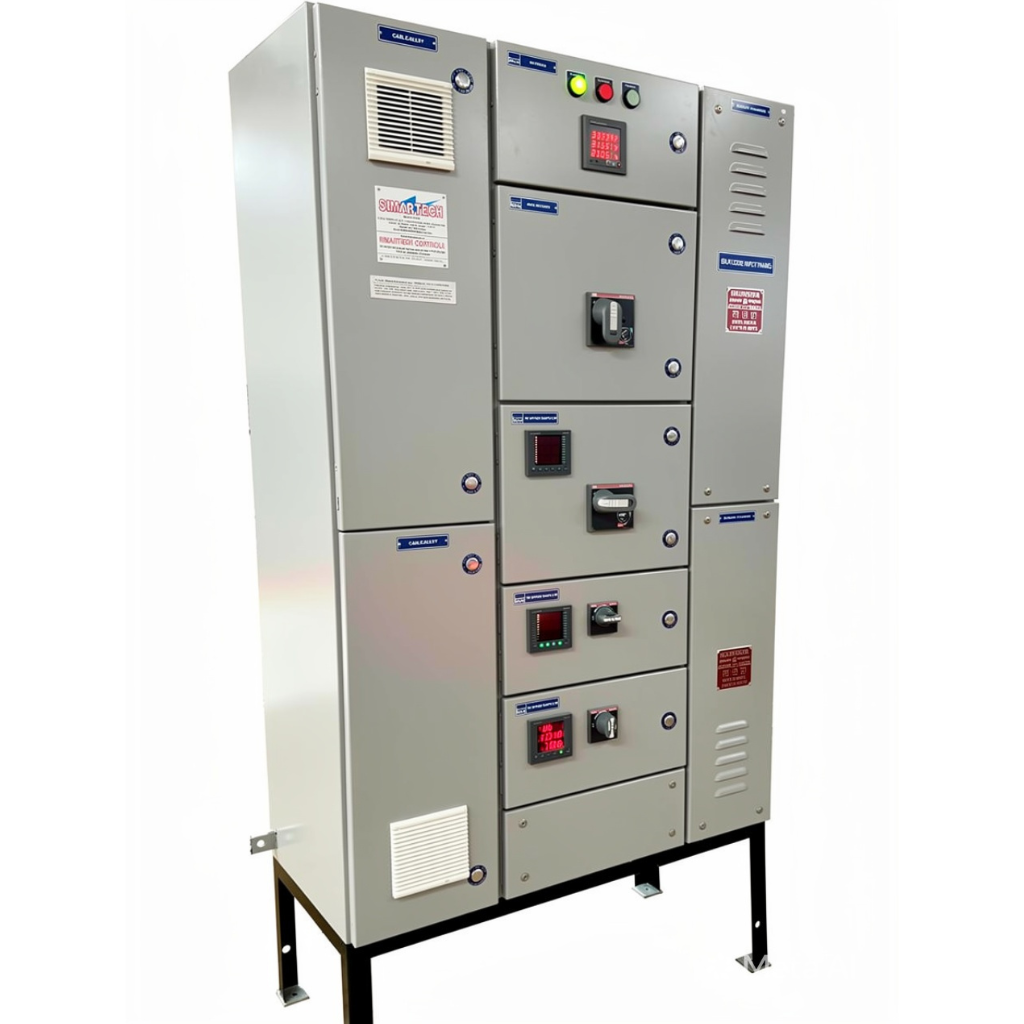

PDP Board Overview

PDP panels, or Power Distribution Panels, manage and distribute electrical power across various systems. They ensure efficient, reliable, and safe power distribution by incorporating robust circuit protection, high-quality enclosures, and advanced technology. Ideal for industrial and commercial applications, they enhance electrical system performance.

Technical Features of PDP Panels

Contactors:

Electrically controlled switches designed for high-current applications, contactors enable reliable switching of electrical circuits. They manage large power loads by opening or closing contacts to control the flow of electricity, ensuring safe and efficient operation of electrical systems

Switchgears:

Comprising disconnect switches, fuses, and circuit breakers, switchgears control, protect, and isolate electrical equipment. These panel boards ensure safe operation by managing electrical faults, preventing overloads, and enabling maintenance or repair by isolating sections of the electrical system.

On/Off Switches:

Basic manual switches used for simple circuit control. They allow users to manually turn electrical circuits on or off, providing straightforward control over the flow of electricity to connected devices and systems.

Digital Meters:

Devices for monitoring key electrical parameters such as voltage, current, and power consumption. Digital meters provide precise and real-time measurements, enabling better monitoring and management of electrical systems for optimal performance and troubleshooting.

Capacitors:

Components used for power factor correction to improve electrical efficiency. By storing and releasing electrical energy, capacitors reduce reactive power, minimize energy losses, and enhance the overall efficiency and stability of the power distribution system.

Specification	Details	General Values	Possible Values
Rated Voltage	Nominal operating voltage of the power panel	415V AC	380V AC, 415V AC, 690V AC
Rated Current	Maximum current capacity of the power panel	100A to 4000A	100A to 6300A
Frequency	Operating frequency of the panel	50 Hz	50 Hz, 60 Hz
Short Circuit Withstand Capacity	Capacity to withstand short circuit conditions	50 kA for 1 sec	25 kA to 100 kA for 1 sec
Busbar Material	Material used for busbars	Copper	Copper, Aluminum
Busbar Size	Cross-sectional area of the busbar	50mm x 10mm	50mm x 10mm to 200mm x 10mm
Busbar Insulation	Type of insulation for busbars	Heat Shrink PVC Sleeves	PVC Sleeves, Epoxy Coated
Incoming Feeder	Type and number of incoming feeders	ACB, MCCB	ACB, MCCB, SFU
Outgoing Feeder	Type and number of outgoing feeders	MCCB, MCB	MCCB, MCB, SFU
Protection Features	Built-in protection features	Overload, Short Circuit, Earth Fault	Overload, Short Circuit, Earth Fault, Overvoltage
Ingress Protection (IP Rating)	Level of protection against dust and water	IP 42	IP 42, IP 54, IP 65
Control Voltage	Voltage used for the control circuit	24V DC	24V DC, 110V AC, 230V AC
Panel Structure	Type of panel structure	Compartmentalized, Non-compartmentalized	Compartmentalized, Non-compartmentalized, Modular
Auxiliary Power Supply	Power supply for auxiliary circuits	230V AC	24V DC, 230V AC
Operating Temperature	Ambient temperature range for normal operation	-5°C to +40°C	-10°C to +55°C
Cooling Arrangement	Cooling method used in the panel	Natural Air Cooling	Natural Air, Forced Air Cooling
Compliance Standards	Standards the panel adheres to	IEC 61439	IEC 61439, IS 8623
Cable Entry	Provision for cable entry	Bottom	Bottom, Top

Industrial Applications of PDP Panels

PDP panels are used in manufacturing plants for controlling power distribution to machinery, data centers for managing server power, HVAC systems for efficient operation, water treatment facilities for powering pumps and controls, and commercial buildings for electrical management. They ensure reliable, efficient, and safe power distribution across diverse applications.

Safety and Compliance for PDP Board

Burak Electric ensures several safety measures in PDP panels such as: MCBs protect circuits from overcurrents, MCCBs handle higher current ratings for robust protection, ELCBs detect current imbalances to prevent electrical shocks, and overload relays trip circuits when currents exceed preset limits, safeguarding equipment and enhancing overall safety.

Trust Burak Electric for PDP Board

We being a manufacturer and supplier of power distribution board follow safety measures, including MCBs, MCCBs, ELCBs, and overload relays. Our control panel are engineered for reliable performance, with advanced protection features that ensure efficient power distribution and safeguard against overcurrents, electrical shocks, and equipment damage.
