MDB Full Form in Electrical: Main Distribution Board Meaning, Function & Parts
-1793426619514.jpg)
MDB stands for Main Distribution Board. It is a key component of an electrical power distribution system that receives incoming power and distributes it to downstream distribution boards and electrical loads.
MDB stands for Main Distribution Board. In other words, electrical main distribution panel receives the power from a utility transformer or generator and supplies it to sub-boards and final circuits.
You will also hear it referred to as a main distribution panel or main panel board. The name varies by location but the functionality remains the same – an electrical main distribution panel serves to control, protect and distribute power safely.
A Main distribution board performs three key functions – isolation, protection and distribution of load. In other words, in case of fault, they are designed to cut the supply before the wires get damaged by overheating.
In India, the standard low voltage supply is 230 V single phase and 415 V three phase, 50 Hz. So an electrical main distribution panel is constructed in a manner to allow for these voltages to be safely distributed to every outgoing feeder. All electrical main distribution panels will follow this principle, although the size will vary depending on the application – a small main db board for apartment blocks versus a large factory unit.
An MDB consists of an incoming isolator, bus bars, circuit breakers, metering and an earthing bar. Each element fulfills a particular role.
Incoming isolator: Provides manual isolation of the electrical supply for maintenance.
ACB or MCCB: Provides switching and protection against specified overload and short-circuit conditions.
Busbars: Copper or aluminium conductors that distribute incoming power to outgoing feeders.
MCBs and MCCBs: Protect individual outgoing circuits against overloads and short circuits, according to their ratings and applications.
RCCB/RCBO: Provides residual-current protection against earth-leakage faults. An RCCB does not provide overload and short-circuit protection unless combined with suitable protective devices.
Metering instruments: Monitor parameters such as voltage, current, frequency and energy consumption.
Earthing bar: Provides the connection point for protective earthing conductors.
In addition, every electrical main distribution panel has to have proper labeling. "Proper labelling helps electricians and maintenance teams identify individual feeders quickly during inspection, troubleshooting and emergency maintenance.".
An MDB feeds the entire building while an SMDB feeds a section (floor or wing) and a DB feeds the final circuits (lights and sockets). Here is a comparison at a glance.
[ Transformer ]
|
v
[ Main MDB Panel ]
|
+------+------+
| |
v v
[ SMDB ] [ Industrial Load ]
|
v
[ DB ]
|
v
[ Lights / Sockets ]
It matters because it is your first line of defense against overloads, short circuits and earth faults. Poorly designed, installed or maintained distribution panels can increase the risk of overheating, electrical faults, equipment damage and fire.
Electrical failures are a known fire hazard. The National Fire Protection Association in the United States meticulously tracks electrical distribution equipment as a recurring cause of fires in buildings. Hence there are standards that ensure a good level of safety. An electrical main distribution panel can provide that reassurance with adequate breakers, earthing and enclosure.
An MDB should be designed, manufactured and verified according to the applicable standards for low-voltage switchgear and controlgear assemblies.
In India IS/IEC 61439 is the standard for voltage switchgear and controlgear assemblies. IS/IEC 61439 Part 1 sets the general rules and IS/IEC 61439 Part 2 focuses on power switchgear and controlgear assemblies.
Circuit breakers used inside an MDB should comply with their applicable product standards. For example, IS/IEC 60947-2 applies to low-voltage circuit breakers.
Before buying an MDB I always look at the rated current the short‑circuit withstand ability, the temperature‑rise test, the insulation quality and the test reports that support the MDB.
-1793425764085.jpg)

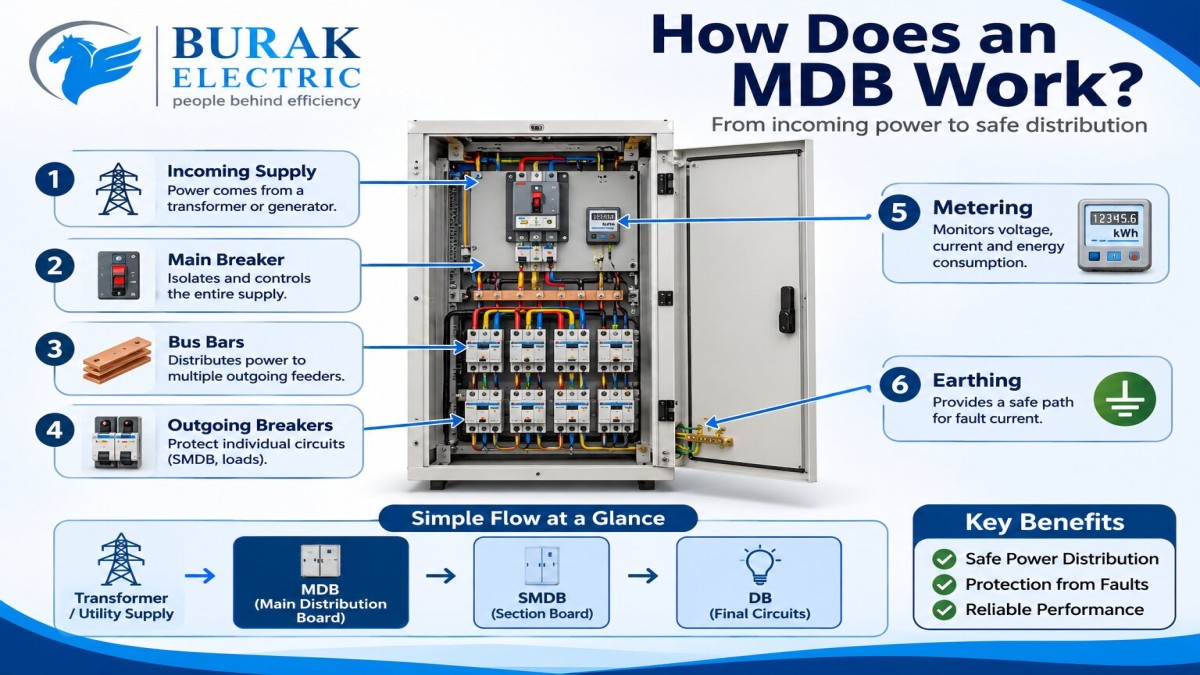

Power flows into the incomer and through the main breakers, along the bus bars and out via the outgoing breakers. Each stage ensures that the next is protected.
Let’s lay it out in simple terms. The utility supply comes in as the incomer. The main breaker can isolate the entire supply. The bus bars distribute the power to various feeders. The outgoing breakers then feed the supply to SMDBs or large machines. In case of a fault in one of the feeders, the other ones continue to run – and that is the beauty of a well-designed electrical main distribution panel.
Avoid undersized breakers, loose terminations and poor ventilation. These are the three biggest culprits behind panel failures.
Heat is the nemesis of a distribution panel. Loose connections will lead to heating which in turn leads to failures. Make sure that the electrical main distribution panel is kept clean, dry and accessible – and that you leave space in front so that you can safely work on it. Avoid stacking storage boxes against it. Your future self will thank you.
Start with your total connected load and then add some spare capacity. Choose the panel ratings, breakers and enclosure accordingly.
Here is a simple checklist.
A home will need a compact electrical main distribution panel while a factory will need a floor-standing, multi-feeder board. Match the board to the building and not the other way round.
Anyone with a building that has more than one floor, commercial unit or factory needs an Electrical Main distribution panel. Small homes will typically have a DB. Housing societies, malls, hospitals and workshops all make use of one.
1. What is the full form of MDB in electrical?
MDB stands for Main Distribution Board. It is the primary electrical main distribution panel that feeds all other boards.
2. Is an MDB the same as a main panel board?
Yes, in most cases. Main panel board, main distribution panel and MDB refer to the same equipment.
3. What is the difference between MDB and DB?
An MDB handles the whole building’s incoming power while a DB serves only final circuits such as lighting and sockets.
4. How often should an electrical main distribution panel be inspected?
Annual inspection is a good baseline, with thermal scanning for heavy-load sites. Follow your local code and the manufacturer’s advice.
5. Can I install an electrical main distribution panel myself?
No. A licensed electrician should install and test it. Live busbars are not a DIY hobby.
Looking for a Main Distribution Board?
Burak Electric manufactures and supplies electrical distribution panels for commercial and industrial applications. Explore our MDB Panels for your electrical distribution requirements.
MDB stands for Main Distribution Board – the first point of entry of power into a building. It isolates, protects and distributes electricity through busbars, breakers, leakage protection and earthing. MDB feeds SMDB, which feeds DB. Choose the right electrical main distribution panel by checking load, spare capacity, fault rating and standards like IS/IEC 61439. Buy tested, certified boards, and have a licensed electrician do the install.
