Variable Frequency Drive (VFD) Panel Manufacturer & Supplier

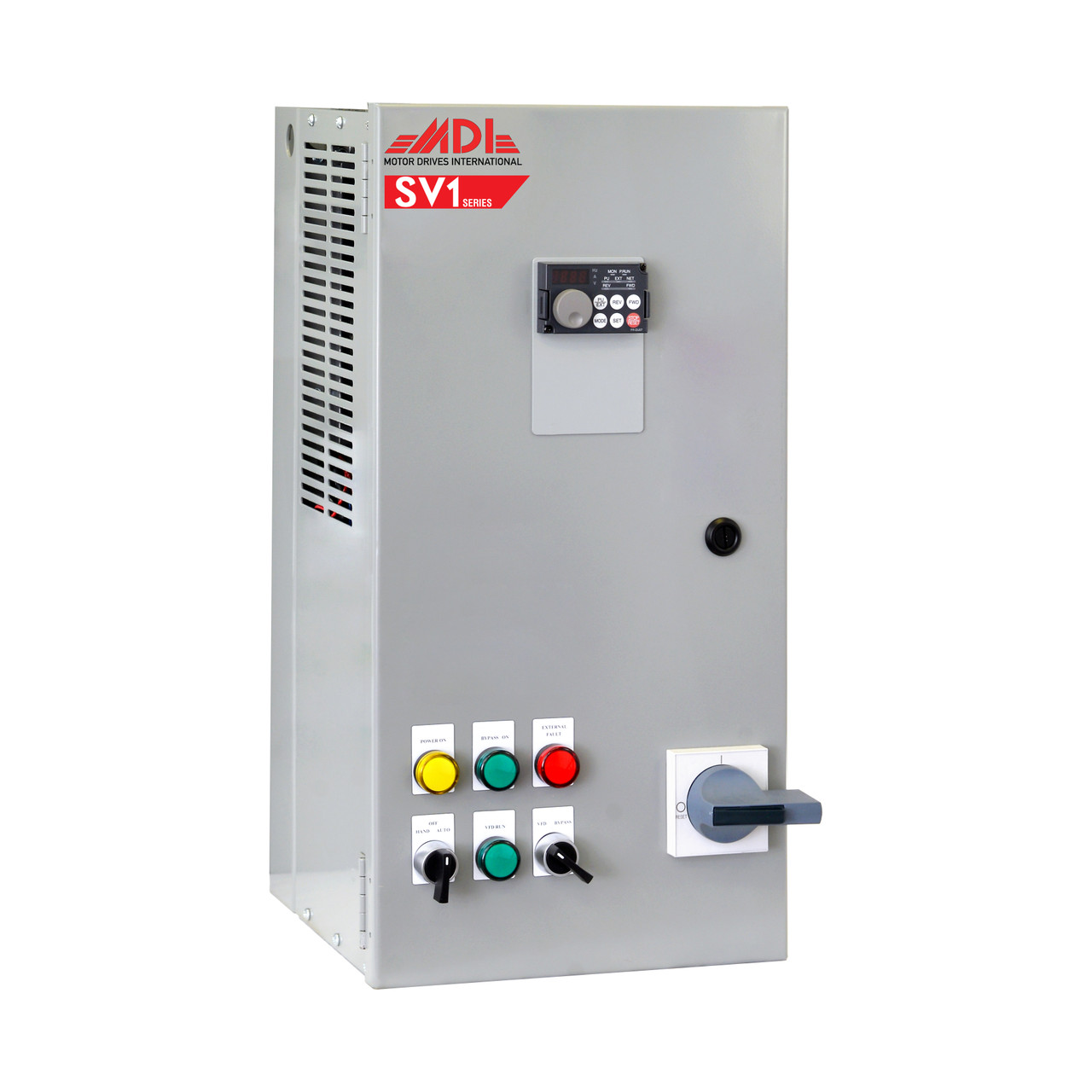

VFD Panel Overview

VFD panels, also known as variable frequency drive panels or VFD control panels, are enclosed cabinets that house VFDs and other electrical components used to control the speed of three-phase AC motors. VFD panels are commonly used in applications such as pumping, drilling, and conveyors. They offer benefits like energy savings, adjustable speed, smooth operation, and visual diagnostics.

Key Features of Burak Electric's VFD panels

Energy Savings:

VFD panels can significantly reduce energy consumption by adjusting motor speed based on demand. They accomplish this by controlling the voltage and frequency supplied to the motor, allowing it to operate at optimal efficiency and preventing unnecessary energy waste.

Adjustable Speed:

VFD panels allow for precise control of motor speed, enabling businesses to optimize processes and improve product quality. A frequency control potentiometer, operator input, or closed-loop control logic can adjust the motor speed.

Smooth Operation:

VFD panels ensure smooth motor starting and stopping by gradually increasing and decreasing voltage and frequency, which minimizes mechanical stress on equipment and reduces wear and tear, potentially extending the lifespan of machinery.

Power Switching and Protection:

Equipped with circuit breakers and safety features, VFD panels safeguard both operators and equipment. A circuit breaker connected to the main power supply enables safe panel activation and deactivation. It also provides protection against short circuits and overloads within the circuit and variable speed drives.

Visual Diagnostics:

VFD panels offer real-time monitoring of motor performance through various indicators and displays. This feature allows operators to identify potential issues quickly and prevent costly downtime. They can display information about power consumption, frequency, amperage, and fault codes.

Specification	Details	General Values	Possible Values
Rated Voltage	Nominal operating voltage of the drive panel	415V AC	380V AC, 415V AC, 440V AC
Rated Power	Total power rating for the drive panel	10 kW to 500 kW	0.75 kW to 1000 kW
Frequency	Operating frequency range of the drive	50 Hz	50 Hz, 60 Hz
Drive Type	Type of drive used in the panel	Variable Frequency Drive (VFD)	VFD, Soft Starter
Control Method	Method used for motor control	Vector Control	V/Hz Control, Vector Control, Direct Torque Control
Input Supply Voltage	Voltage range for the drive panel input	380-480V AC	200-240V AC, 380-480V AC
Input Phases	Number of input phases supported	3-Phase	1-Phase, 3-Phase
Output Voltage	Voltage output by the drive to the motor	0-415V AC	0-240V AC, 0-415V AC
Output Frequency	Frequency range of the output to the motor	0-50/60 Hz	0-50/60 Hz, 0-400 Hz
Control Voltage	Voltage used for control circuits	24V DC	24V DC, 110V AC, 230V AC
Overload Capacity	Drive’s ability to handle overload conditions	150% for 1 minute	110% to 200% for 1 minute
Ingress Protection (IP Rating)	Protection level against dust and water	IP 54	IP 20, IP 54, IP 65
Cooling Method	Method used to cool the drive panel	Forced Air Cooling	Natural Cooling, Forced Air Cooling
Communication Ports	Types of communication interfaces available	RS485, Ethernet	RS232, RS485, Ethernet, Profibus
Communication Protocols	Protocols supported for data exchange	Modbus RTU	Modbus, Profibus, Profinet, Ethernet/IP
Protection Features	Built-in protection features	Overload, Overvoltage, Undervoltage	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
HMI Interface	Human-Machine Interface availability	Integrated	Integrated, External
Display Type	Type of display used on the HMI	LCD	LED, LCD, Touchscreen
Operating Temperature	Ambient temperature range for normal operation	-10°C to +40°C	-20°C to +50°C
Compliance Standards	Standards the panel adheres to	IEC 61800	IEC 61800, IEC 61439
Cable Entry	Provision for cable entry	Bottom	Bottom, Top
Mounting Type	Method used for mounting the drive panel	Floor Mounted	Floor Mounted, Wall Mounted

Applications of VFD Control Panel

VFD panels find extensive applications across various industries. In water and wastewater management, they optimize pump performance, ensuring efficient fluid handling. The manufacturing sector benefits from VFD panels by controlling machine tools, boilers, and food processing equipment for enhanced productivity and energy savings. Additionally, HVAC systems rely on VFD panels to regulate pumps and fans, optimizing energy consumption and maintaining comfortable environments.

Safety and Compliance

Our VFD panels are designed and manufactured in strict adherence to follow safety standards. We ensure the protection of both personnel and equipment, providing features such as emergency stop buttons, short-circuit protection, overcurrent protection, and isolation transformers where required. Our commitment to safety is reflected in every aspect of the panel's design and construction.

Trust Burak Electric for Best VFD Panels

Burak Electric excels in producing VFD panels that not only meet but often exceed these standards. Our commitment to quality, coupled with advanced technology, results in superior products tailored to diverse industrial needs. Trust Burak Electric for innovative and dependable VFD panel solutions.

Burak Electric’s VFD Control Panel
