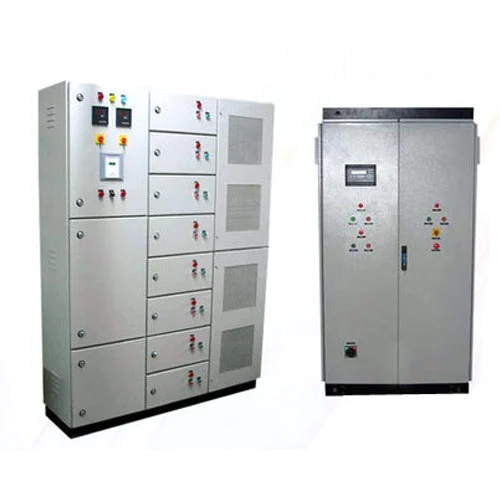

PCC Panels Overview

Burak Electric's Power Control Center (PCC) panels are specialized electrical power control panels crucial for distributing and controlling power in industrial and commercial environments. They act as the central hub, receiving power from the grid or a generator and distributing it to various parts of a facility. PCC panels are essential for managing high-power loads and voltages, ensuring reliable power distribution, and protecting electrical systems.

Key Features of Burak Electric's Power Control Center Panels

Robust Construction:

Burak Electric's PCC panels are built using high-quality raw materials like 14/16 SWG CRCA sheet steel, ensuring durability and longevity even in demanding industrial environments.

Protective Devices:

Burak Electric's PCC panels come equipped with an array of protective devices, including circuit breakers, fuses, and protective relays, to safeguard against electrical faults.

Metering and Instrumentation:

Depending on the application, Burak Electric's PCC panels can include various metering devices, such as ammeters, voltmeters, and energy meters, for comprehensive system monitoring.

Modular Design:

Burak Electric's PCC panels feature a modular design, allowing for flexibility in configuration and future expansion as power needs evolve.

Busbar System:

Burak Electric's PCC panels utilize copper or aluminum busbars to carry high currents safely and efficiently. The busbar system is designed to withstand high fault levels and temperature rises.

Technical Specifications

Specification	Details	General Values	Possible Values
Rated Voltage	The nominal voltage at which the PCC operates	415V AC	415V, 690V AC
Frequency	The operating frequency of the PCC	50 Hz	50 Hz, 60 Hz
Rated Current	Maximum current the PCC can handle	800A to 4000A	630A to 6300A
Short Circuit Withstand Capacity (Icw)	The maximum current the PCC can withstand during a short circuit	50 kA for 1 sec	35 kA to 100 kA
Number of Incomers	Total number of incoming feeders housed in the PCC	2 to 4	1 to 6
Type of Incomers	Type of incomer breakers provided	ACB, MCCB	ACB, MCCB, SFU
Ingress Protection (IP Rating)	Protection level against dust and water	IP 42	IP 42, IP 54, IP 55, IP 65
Busbar Material	Material used for busbars	Electrolytic Grade Copper	Copper, Aluminum
Busbar Size	Cross-sectional area of the busbar	50mm x 10mm	50mm x 10mm to 100mm x 10mm
Busbar Insulation	Insulation type for the busbar	Heat Shrink PVC Sleeves	PVC Sleeves, Epoxy Coated
Control Voltage	Voltage used for control circuits	110V AC/DC, 230V AC	24V DC, 110V AC/DC, 230V AC
Panel Structure	Type of structure used	Compartmentalized	Fixed Type, Compartmentalized, Drawout Type
Panel Color	Color of the panel's external surface	RAL 7032	RAL 7032, RAL 7035, Customized
Operating Temperature	Ambient temperature range for normal operation	-5°C to +40°C	-25°C to +55°C
Cooling Arrangement	Method used for cooling the panel	Natural Air Cooling	Natural, Forced Air Cooling
Protection Relays	Types of protection relays provided	Overload, Short Circuit, Earth Fault	Overload, Short Circuit, Earth Fault, Under/Over Voltage
Auxiliary Power Supply	Power supply for auxiliary circuits	230V AC	24V DC, 48V DC, 230V AC
Earthing	Provision for earthing	Copper Earthing Bus	Copper, Aluminum Earthing Bus
Compliance Standards	Standards to which the PCC conforms	IEC 61439, IS 8623	IEC 61439, IS 8623, NEMA
Cable Entry	Provision for cable entry	Bottom/Top	Bottom, Top

Applications of PCC Panels

ndustrial Plants: PCC panels are used to power heavy machinery and essential equipment in factories and processing plants.

Commercial Buildings: Big offices, data centers, and skyscrapers use PCC panels to keep their power supply steady and reliable.

Renewable Energy Systems: Solar power plants use PCC panels to handle and distribute the electricity from solar panels.

Safety and Compliance

Burak Electric's PCC panels offer advanced protection against short circuits, overloads, ground faults, and arc faults, ensuring the safety of personnel and equipment. Indoor panels should have an IP54 rating, while outdoor panels require an IP65. Constructed with laser-cut CRCA sheets and powder-coated for durability, Burak Electric's panels must undergo rigorous testing for safety. Compliance with UL, NEMA, and IEC standards ensures they meet necessary safety and operational criteria.

Trust Burak Electric for Reliable PCC Panels

At Burak Electric, earning your trust is key. We focus on delivering high-quality, reliable, and efficient power distribution panels, like PCC or MCC panels. Our commitment to excellence ensures we are your dependable partner for all your electrical needs.

Power Control Centre (PCC) Panel Manufacturer
