Programmable Logic Controller Panel

From complex to simple, PLC panels simplify industrial processess

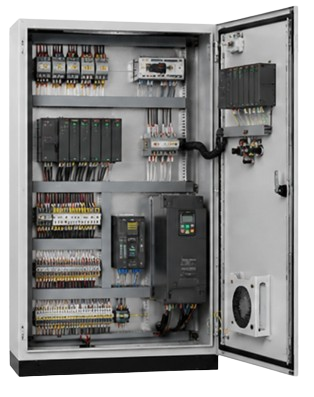

PLC Panel Overview

A PLC control panel is an industrial cabinet that contains a programmable logic controller (PLC) and other components like relays and power supplies. It automates factory processes, controlling devices like motors and pumps, providing a centralized and reliable way to manage complex industrial tasks.

Technical Components of PLC Panels

Relays:

These are electromechanical switches used to control high-power devices with low-power signals, allowing the PLC boards to manage multiple circuits.

Circuit Breakers (such as Motor Circuit Breakers - MCBs)

These protect the electrical circuits from overloads and short circuits, ensuring safe operation of motors and other equipment.

Power Supplies (such as SMPS):

Switch Mode Power Supplies (SMPS) convert and regulate the electrical power needed to run the PLC and other panel components, ensuring consistent and efficient power distribution.

Terminal Blocks:

These provide secure and organized connections for wiring, making it easier to manage and troubleshoot the electrical connections within the panel.

DIN Rail:

These metal rails are used to mount and secure the various components like relays, terminal blocks, and circuit breakers inside the panel, ensuring a neat and modular setup.

Technical Specifications

Specification	Details	General Values	Possible Values
PLC Type	The type of PLC used in the panel	Modular PLC	Modular, Compact, Rack-mounted
CPU Processing Speed	Speed at which the PLC’s CPU processes instructions	0.1 ms/Instruction	0.1 ms to 0.5 ms/Instruction
Memory Capacity	Total memory available for program storage	512 KB	64 KB to 1 MB
Number of I/O Points	Total number of input/output points supported	64	16 to 1024
Power Supply	The type of power supply for the PLC	24V DC	24V DC, 110V AC, 230V AC
Communication Ports	Types of communication interfaces available	Ethernet, RS232, RS485	Ethernet, RS232, RS485, Profibus, Modbus
Communication Protocols	Protocols supported for data exchange	Modbus TCP/IP	Modbus, Profibus, Ethernet/IP, Profinet
HMI Integration	Integration capability with Human-Machine Interface	Supported	Supported, Not Supported
Programming Language	Languages used for PLC programming	Ladder Logic, Structured Text	Ladder Logic, Structured Text, Function Block Diagram, Instruction List
Expansion Modules	Capability to add expansion modules	Available	Available, Not Available
Operating Temperature	Ambient temperature range for normal operation	0°C to 55°C	-20°C to 60°C
Storage Temperature	Temperature range for safe storage	-25°C to 70°C	-40°C to 85°C
Ingress Protection (IP Rating)	Protection level against dust and water	IP 54	IP 20, IP 54, IP 65
Vibration Resistance	Level of vibration resistance	1g	0.5g to 2g
Shock Resistance	Level of shock resistance	15g	10g to 20g
Mounting Type	Method used for mounting the PLC	DIN Rail	DIN Rail, Rack Mounted, Panel Mounted
Compliance Standards	Standards to which the PLC conforms	IEC 61131	IEC 61131, UL 508
Redundancy	Support for redundant CPUs or power supplies	Optional	Available, Not Available

Applications of PLC Panels

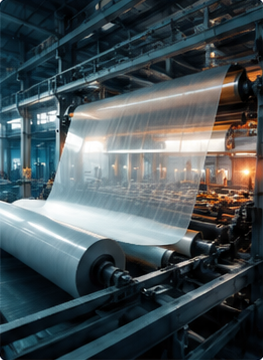

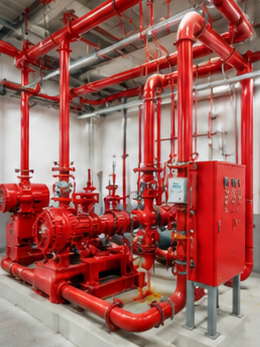

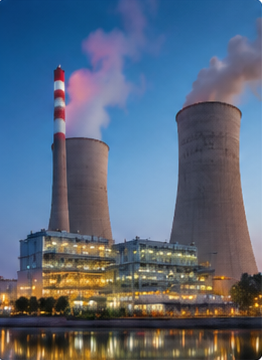

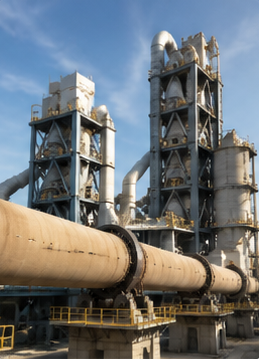

PLC panels are vital in automating and controlling processes across various industries. They manage temperature, timing, and quality in glass and paper production, optimize cement manufacturing, ensure efficient power generation in thermal plants, and monitor fire-fighting pump systems. Additionally, PLC panels are crucial for machine monitoring, enhancing operational efficiency and safety across these applications.

PLC Panel Safety and Compliance

We follow strict safety standards by adhering to ISO guidelines, conducting CPRI-certified testing, and performing comprehensive in-house testing. Being a reliable PLC control panel manufacturer and supplier, we ensure the product is grounded properly, equipped with circuit protection (breakers, fuses), and designed with safe wiring practices. We use appropriate PLC panel designs, conduct regular maintenance, include emergency stop buttons, and maintain detailed documentation for full compliance.

Trust Burak Electric for PLC Panels

Burak Electric is your trusted PLC Panel Supplier for smooth operations. Built with top-quality parts and expert craftsmanship, our panels are designed to work flawlessly and reliably. With years of experience, we create custom solutions that fit your exact needs, ensuring minimal downtime and maximum productivity. Choose Burak Electric for dependable automation control.
