Main Distribution Boards (MDB)

Reliable power distribution starts with a robust core. Our Distribution Panels provide high-performance circuit management, ensuring that every area of your facility receives consistent power while protecting sensitive equipment from electrical faults.

Explore Distribution Panels

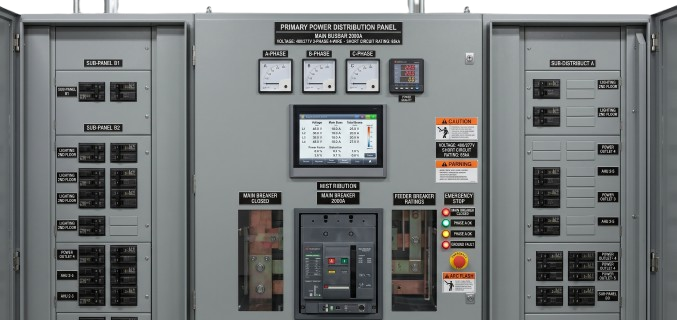

Distribution Panel Overview

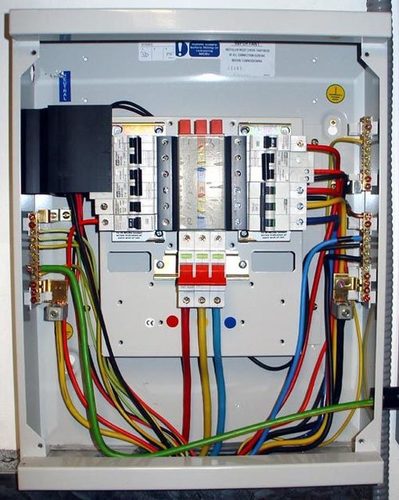

A Distribution Panel serves as the primary point where an incoming power supply is divided into multiple subsidiary circuits. Each circuit is protected by a dedicated fuse or circuit breaker, providing a critical layer of safety. These panels are engineered to handle high load capacities while maintaining a compact footprint, making them the backbone of any building's electrical infrastructure.

Technical Features of Distribution Panels

Molded Case Circuit Breakers (MCCBs):

Heavy-duty protection units that automatically disconnect power during overloads or short circuits.

High-Conductivity Busbars:

Precision-aligned copper or aluminum bars that facilitate efficient power flow with minimal heat generation.

Phase Indicators:

LED indicators that provide a quick visual status of the power supply across all three phases.

Neutral & Earth Links:

Dedicated termination points that ensure proper grounding and balanced return paths for electrical safety.

Technical Specifications

Specification	Details	General Values
Rated Voltage	System operating voltage	240V AC (1P), 415V AC (3P)
Current Rating	Total panel capacity	63A to 2500A
Short Circuit Rating	Fault current withstand	10kA to 65kA
Degree of Protection	Ingress protection level	IP 31, IP 43, IP 55
Mounting Type	Installation style	Wall Mounted, Floor Standing (Pedestal)
Material	Enclosure construction	Cold Rolled Steel, Powder Coated
Standards	Compliance certifications	IEC 61439-1, IS 8623
Cable Entry	Connection points	Top, Bottom, or Side Entry

Applications of Distribution Panels

Distribution panels are ubiquitous in modern infrastructure. They are used in Residential Complexes to manage household power, Manufacturing Units to distribute energy to heavy machinery, Hospitals for critical load management, and Retail Centers to power lighting, HVAC, and POS systems safely.

Safety & Circuit Protection

Safety is the primary function of a distribution panel. Our units incorporate Residual Current Devices (RCDs) and Earth Leakage Circuit Breakers (ELCBs) to prevent electrical shocks. Additionally, the panels feature "dead-front" designs, ensuring that no live parts are exposed when the door is opened for routine switching.

Reliability & Engineering

We prioritize longevity and performance. Each panel is treated with an anti-corrosive powder coating to withstand harsh environments. Every internal connection is torqued to specific engineering standards and verified through thermal imaging tests to ensure there are no hot spots before the panel leaves our facility.
